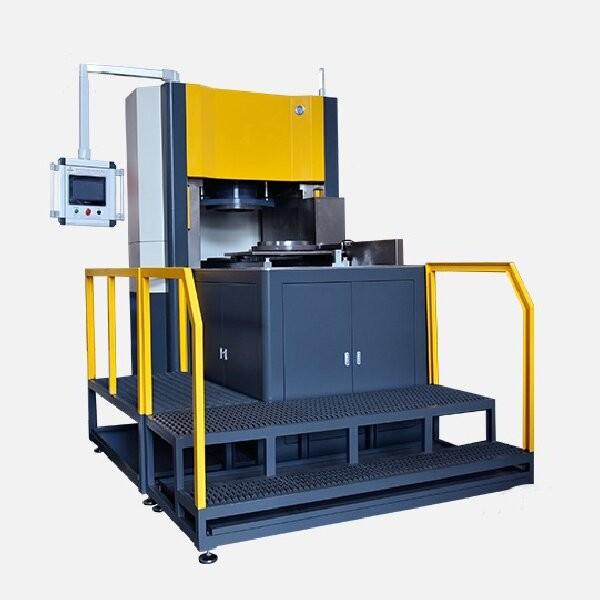

Bidirectional Rheological Precision Polishing Machine

The Two Way Reciprocating Fluid Polishing Machine achieves high-precision surface treatment through abrasive fluid flowing alternately in both directions.Its core principle is to use a hydraulic system to drive abrasive fluid (such as diamond micropowder suspension) to circulate forward and reverse on the surface of the workpiece, combining shearing and rolling to remove microscopic unevenness and achieve nano-level finish (Ra≤0.05μm).The equipment is equipped with an intelligent control system, adjustable reciprocating frequency (10-200Hz) and fluid pressure (0.1-20MPa), and adaptive complex surface polishing.

systems include:
Power system: servo motor or hydraulic cylinder drive to achieve a reciprocating frequency of 10-50Hz;Abrasive circulation: specially formulated fluid abrasives (such as polymer + diamond powder) are circulated in a closed pipeline;Intelligent control: PLC adjusts pressure (0.1-1MPa), stroke (50-300mm) and speed to adapt to different materials.

Core features:
Uniform polishing: bidirectional movement eliminates the texture directionality caused by unidirectional processing;Micron-level accuracy: surface roughness of Ra 0.05-0.2μm can be achieved;Adaptation to complex curved surfaces: fluid abrasives automatically fit the workpiece's special-shaped structure;Environmental design: abrasive recovery rate >95%, noise <75dB.

Typical application scenarios:
Precision molds: mirror processing of injection mold cavities and die-casting molds;Hydraulic components: deburring and flow channel polishing of valve cores and plunger pumps;Medical devices: biocompatible surface treatment of artificial joints and dental implants;Optical devices: ultra-precision polishing of lens mold cores.Compared with traditional manual polishing, the equipment is 8-10 times more efficient and is particularly suitable for precision processing of high-hardness materials (such as cemented carbide and ceramics).

Machine Size

Other Parameters

Shaanxi Forkrobot Manufacturing Co., Ltdestablished in 2016, is a rapidly growing high-tech enterprise specializing in the R&D, production, and sales of intelligent unmanned forklifts, fluid polishing machines, and sandblasting equipment. After over a decade of innovation and development, we have become one of China's leading manufacturers and suppliers of intelligent logistics equipment. We maintain strong partnerships with renowned robotics research institutes and industrial automation leaders, earning an excellent reputation in both domestic and international markets.

Our company focuses on manufacturing cutting-edge intelligent unmanned forklifts (AGV/AMR) and surface treatment equipment, including:

Laser-guided forklifts (1-5T load capacity);SLAM navigation forklifts (±5mm positioning accuracy);  Automated fluid polishing systems (for precision parts);  Intelligent sandblasting machines (robotic arm integration);  With advanced production facilities, we provide customized solutions such as OEM/ODM services, supporting various navigation modes (laser/visual/QR code), special environment adaptations (cold storage/explosion-proof), and intelligent fleet management systems. Our products are exported to over 30 countries across Europe, Southeast Asia, and South America;  To enhance cost efficiency and competitiveness, we expanded production in 2018 by establishing a smart manufacturing base in Xi'an, equipped with automated welding robots and AI quality inspection systems.

Quality & Certification:
ISO 9001, CE, and UL certified;  MTBF (Mean Time Between Failures) > 8,000 hours;24/7 remote monitoring and maintenance support;  Our Mission:"Driving Intelligent Manufacturing, Empowering Global Logistics"Core Values:"Innovation, Integrity, Excellence, and Global Service" We are committed to delivering high-performance equipment, competitive pricing, and tailored solutions to meet diverse industrial needs. With your trust and our expertise, we look forward to building a long-term partnership and growing together in the era of Industry 4.0.
